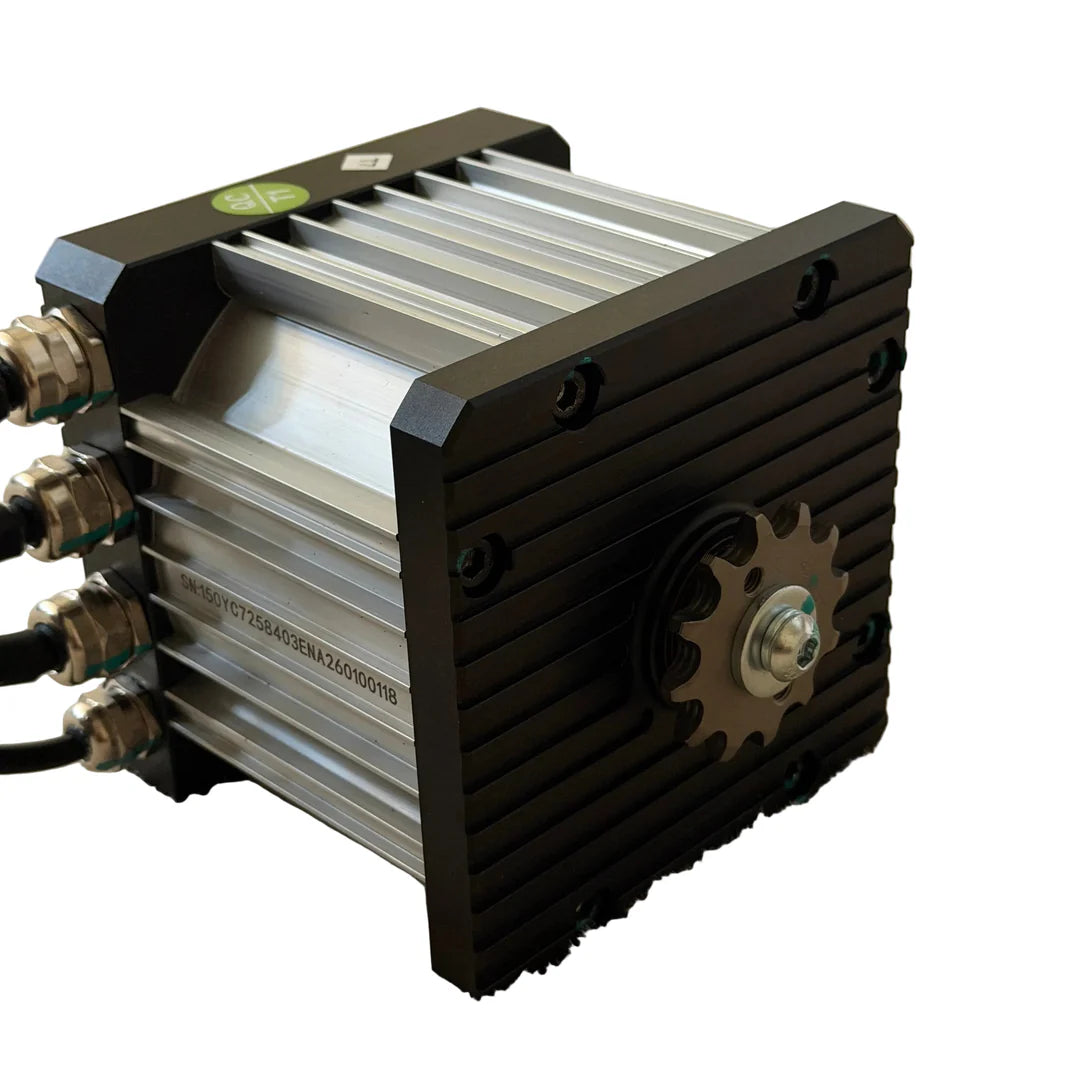

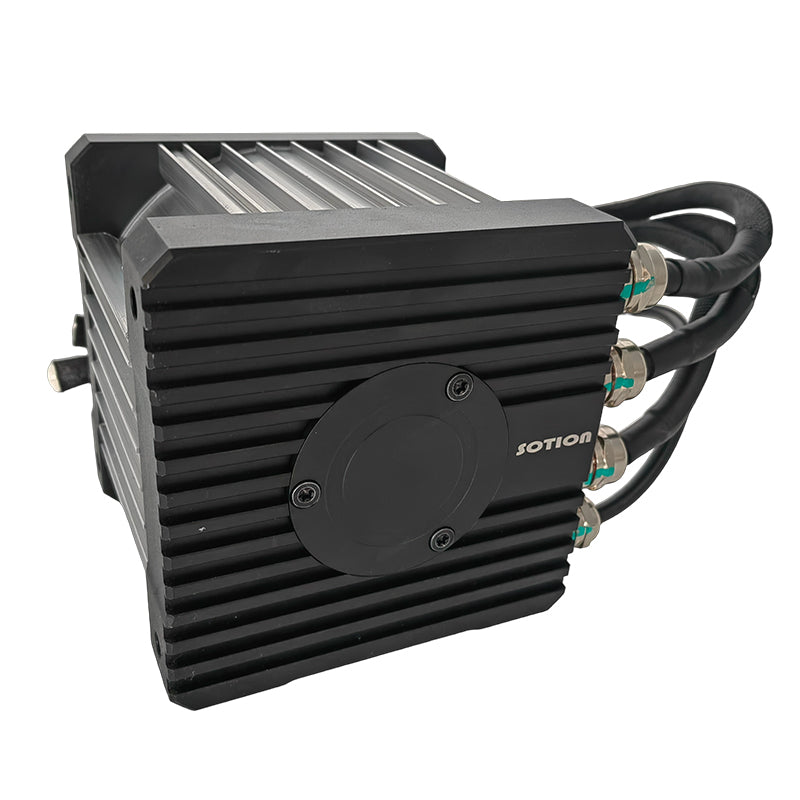

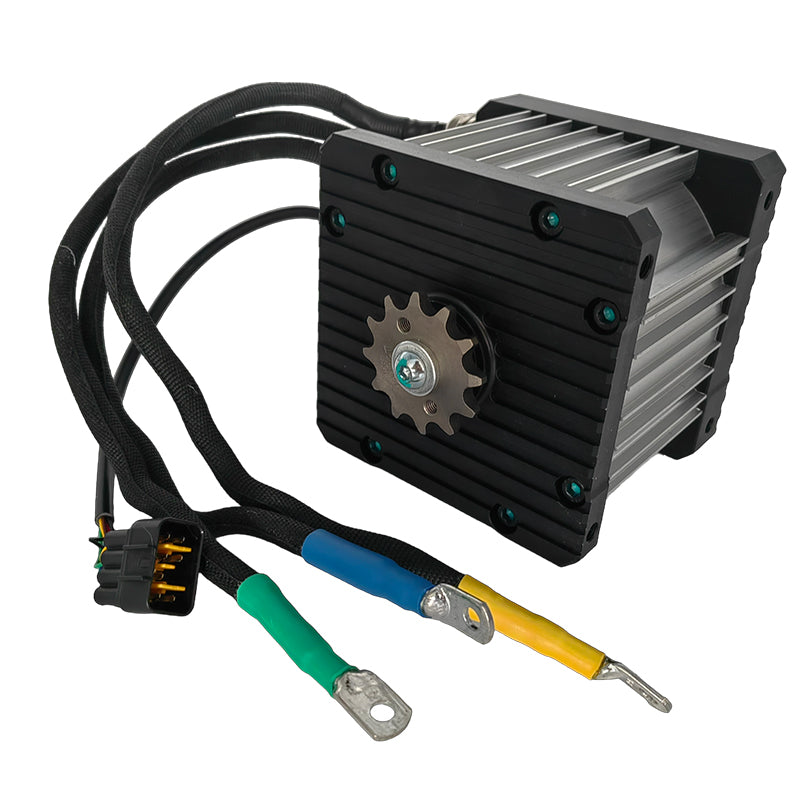

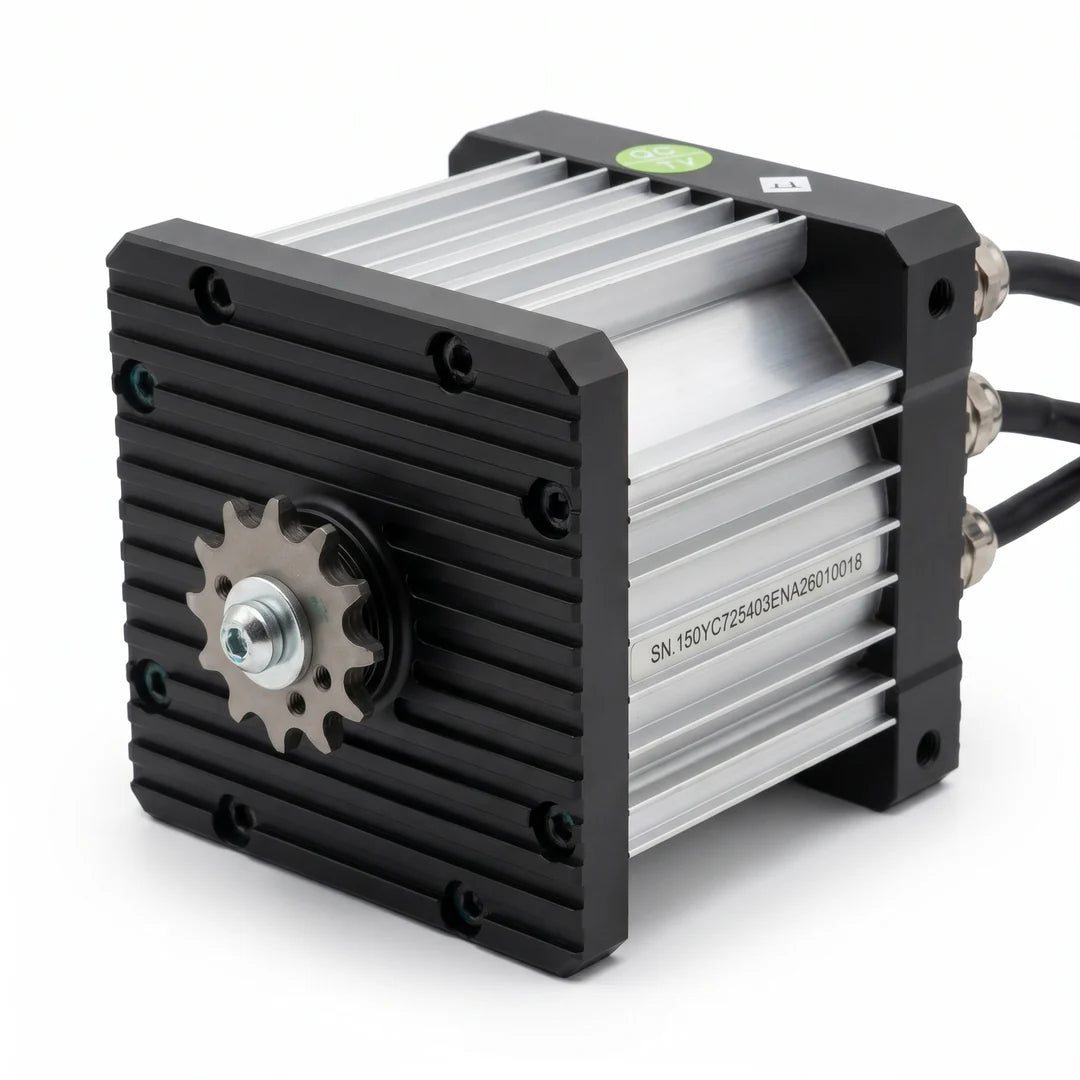

Tuttio Soleil 01 SOTION FW23 72V Mid-Drive Motor

Unlock the true performance potential of your Tuttio Soleil 01 with the SOTION FW23 72V Mid-Drive Motor. Designed for riders who have outgrown the limits of the stock setup, this high-performance motor delivers a significant boost in power, responsiveness, and top-end capability while maintaining a compact, direct-fit design.

With no fabrication or adapters required, the FW23 is a clean upgrade that transforms your bike into a serious high-output machine.

Performance Overview

• Voltage: 72V
• Continuous Power: 8KW (10.73 HP)
• Peak Power: 16KW (21.46 HP)
• Max RPM: 10,000 RPM
• Weight: 16 lbs

Features

High-Output Mid-Drive Design

Delivers strong torque and high RPM capability for aggressive acceleration and improved top speed potential.

Encoder Motor System

Requires an encoder-compatible controller for proper operation and optimal performance.

Recommended Controllers:

• ND72450B
• ND72680B (depending on battery setup)

⚠️ Not compatible with Hall sensor controllers.

Direct Fit Installation

Designed as a bolt-on replacement for the stock motor with no cutting, fabrication, or adapters required.

IP67 Waterproof Rating

Fully sealed construction protects against water, mud, and trail debris for reliable all-weather performance.

Efficient Heat Management

Finned aluminum housing provides passive heat dissipation to maintain stable operating temperatures under load.

High-Strength Output Shaft

Features a splined shaft with included 420 12T sprocket for secure power transfer.

Specifications

• System Voltage: 72V
• Continuous Power: 8KW
• Peak Power: 16KW
• Maximum RPM: 10,000
• Shaft Type: Splined
• Sprocket: 420 chain, 12T included
• Control Type: Encoder
• Waterproof Rating: IP67
• Weight: 16 lbs

Compatibility

• Tuttio Soleil 01

Important Notes

• Requires an encoder-compatible controller for operation
• Do not use Hall sensor controllers
• Ensure proper battery and controller pairing for safe performance

Why Upgrade?

• Massive power increase over stock motor
• Higher top speed potential
• Stronger acceleration and torque delivery
• Direct bolt-on installation
• Waterproof, trail-ready durability
